Cant access the Clutch Lever on your Smittybilt X20 GEN2 Winch? Our Clutch Handle Relocation Kit may be the solution for you!
Machined to fit perfect with your Smittybilt X20 Winch and its OEM Clutch Handle. Our Flexible coupler allows for mis-alignment and transfers the turning power required to activate your clutch even around corners.
If you ordered our Integrated Winch Kit already and now want to add this feature to your kit - you should also add the Stainless Steel Insert that has a hole for your clutch lever. Select your truck model in the drop down menu. In the order comments below please specify your original order number, otherwise specify if you have sensors, or our light kit. We'll send you your bolt on clutch relocation already manufactured to the perfect length.
Need a custom length for a custom application? We offer the kit as a "Builder" option. You'll receive all the parts needed to relocate your clutch up to 18", just cut to length and get it crimped together at a local hydraulic hose shop. This lets you fine tune the exact length, and clocking you need to make sure your custom application works perfectly the first time.

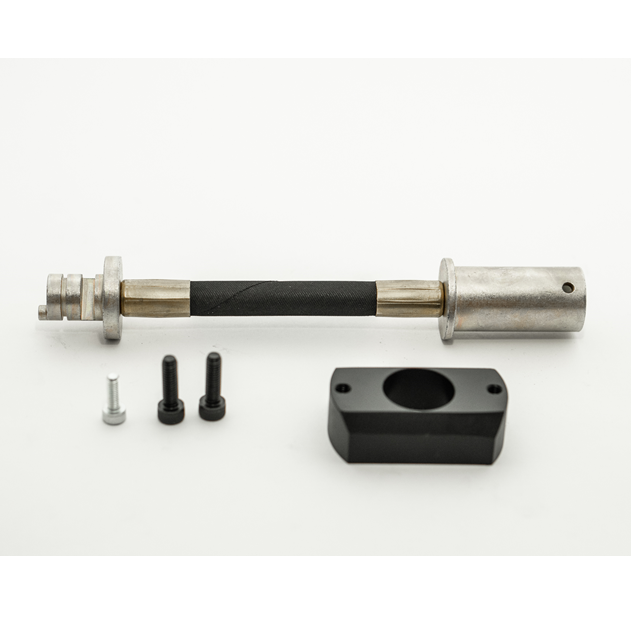

Kit Includes Clutch extension, Bearing Block Assembly that Mounts to the inside of your bumper, and required installation hardware.
Compatibility:
This kit is machined to Fit the GEN 2 X20 Winch's in both Steel and Rope Editions. 8000lbs , 10,000 and 12,000 and 15,000 versions.
This includes the following winch part numbers:
PN 98510, 98512 ,97510, 97512 ,97515, 97517
Manual:
