LEAD TIME APPROX 3 Weeks

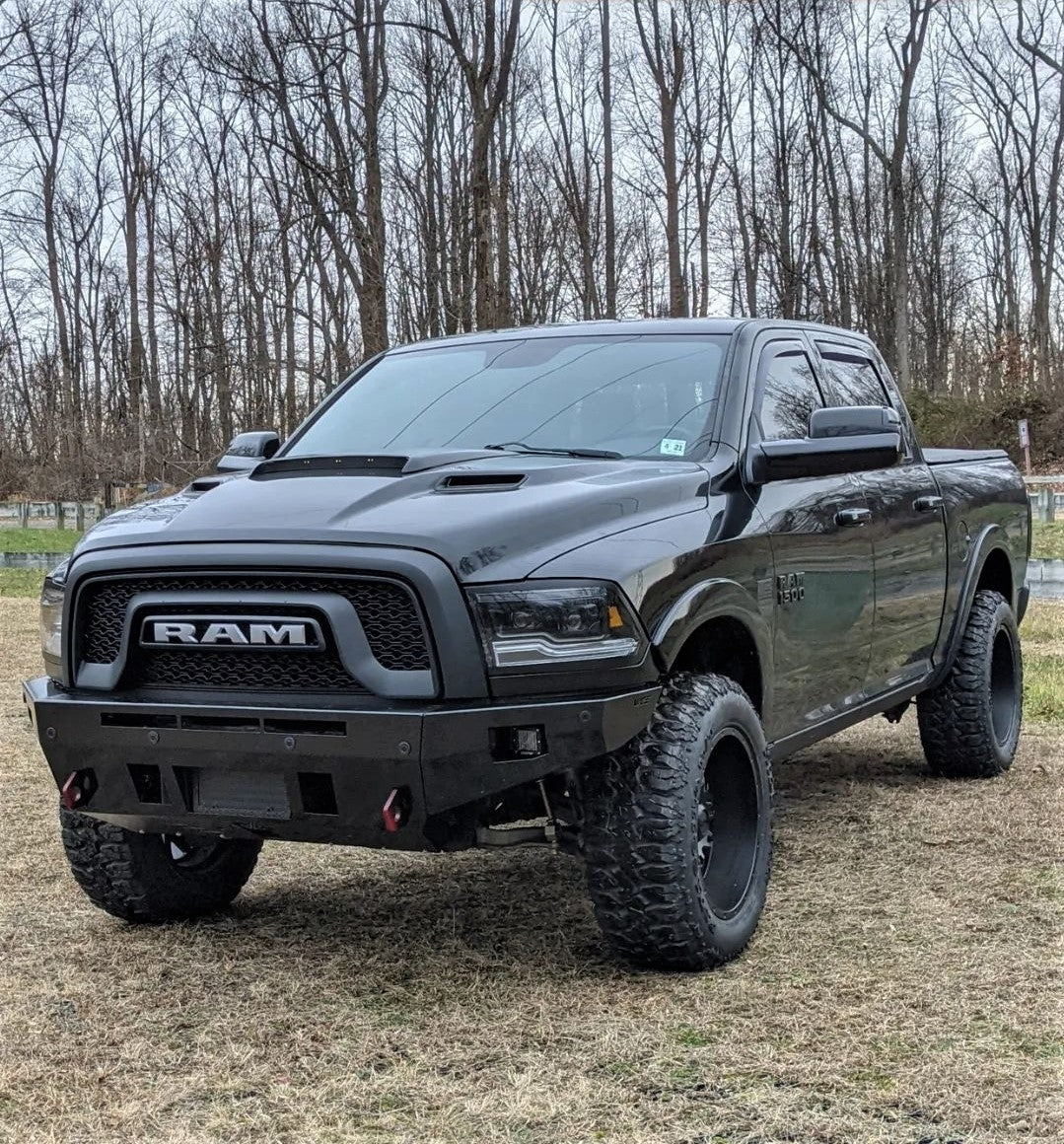

We've shed weight on this V2 Modular [MOD] Series bumper! Constructed with a 10ga steel shell and 1/4" mounting bracketry where it matters, this bumper has a base weight of just 98 lbs!

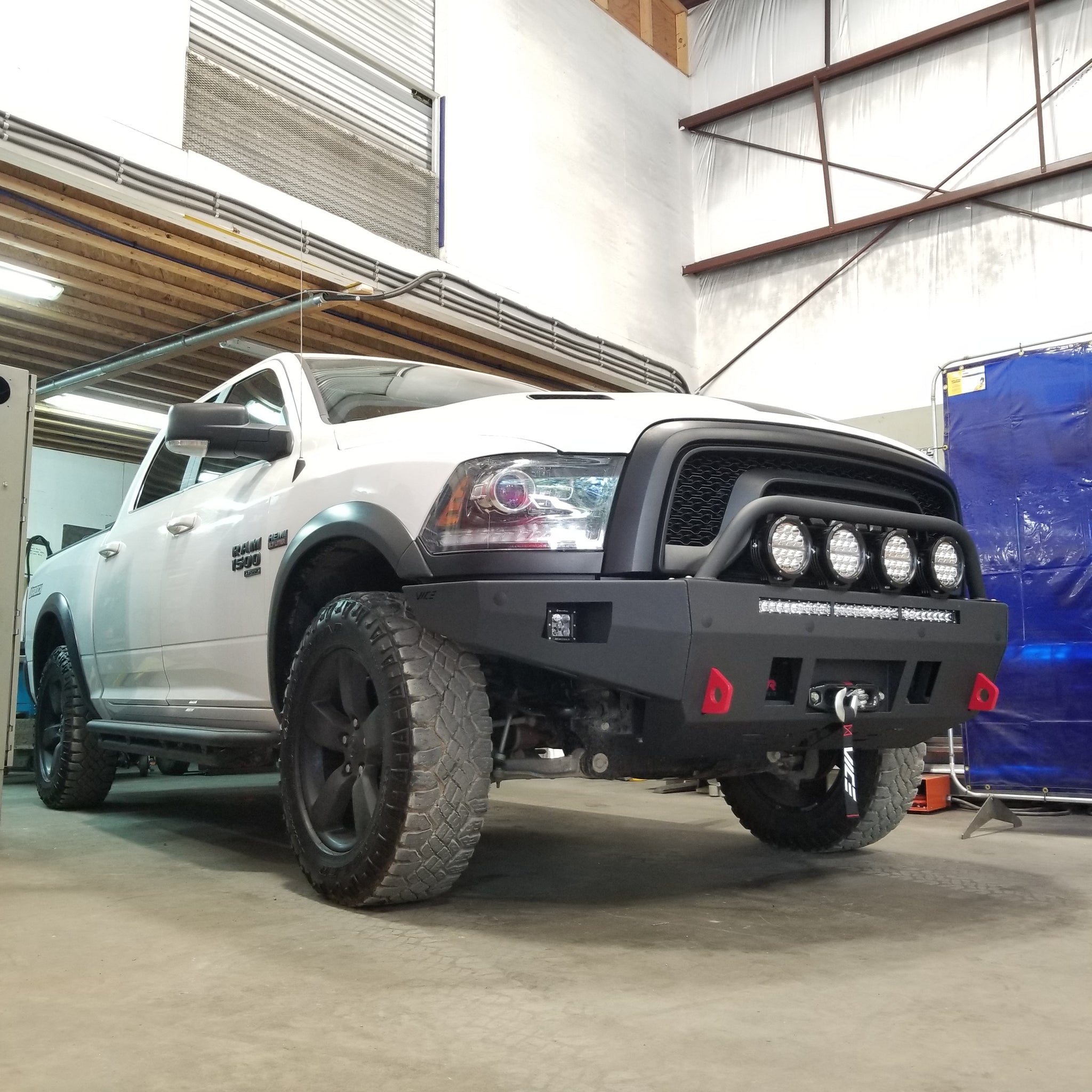

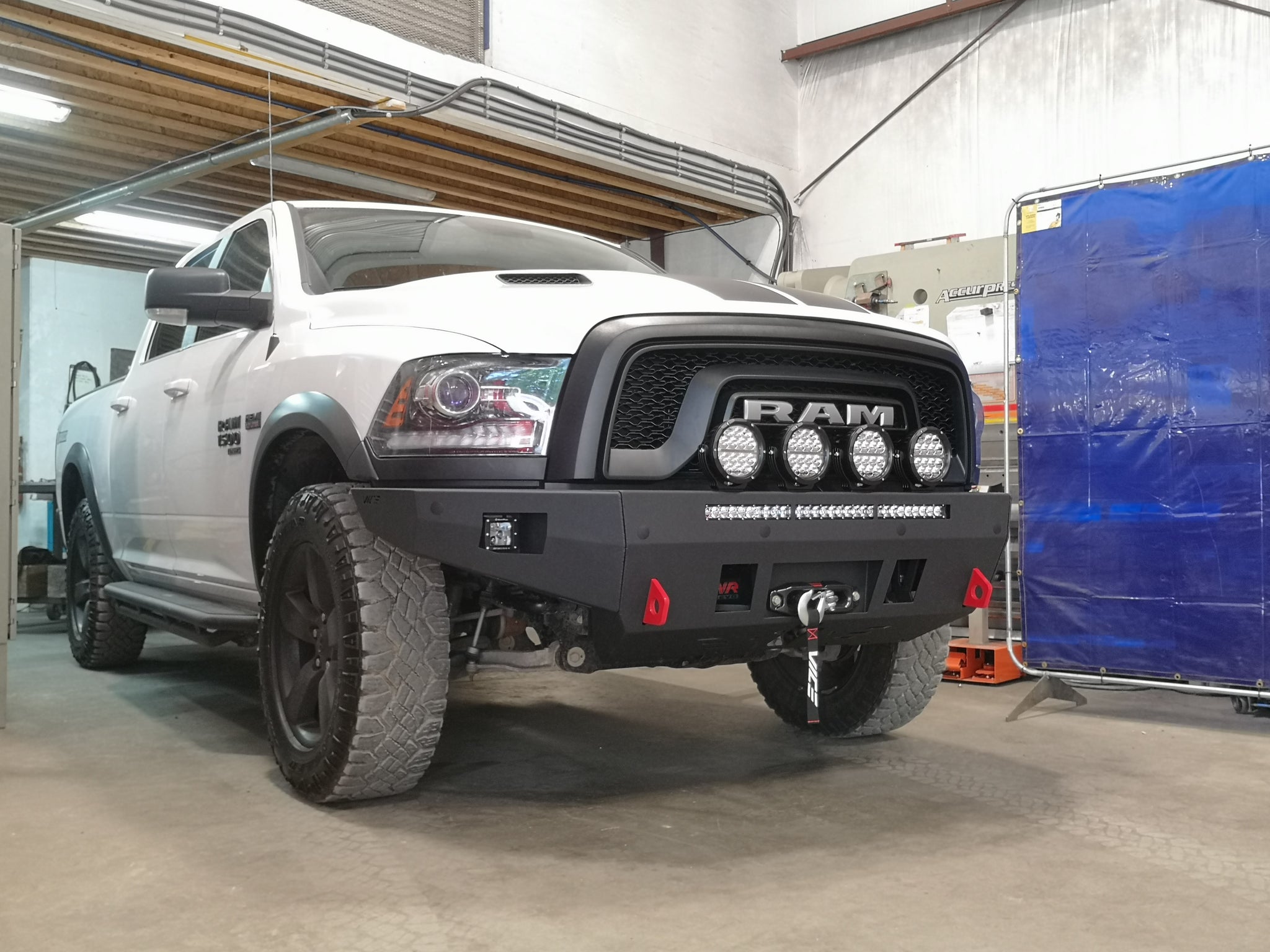

Every bumper comes with all features necessary to add options at any time you wish. The bumper has the necessary features to add a winch tray, hitch receiver and two sizes of tubular bullbars. It also comes with the ability to mount a 32" light bar with two driving lights on either side. We've even added slots at the top to add FOUR 6" round driving lights , compatible with our High Rise Bullbar.
TRUCK COMPATIBLITY
This bumper fits the following:
-2015-2018 RAM REBEL
-2019 - 2023 RAM WARLOCK
with all engine options
OUT OF APPLICATION
-2024+ RAM WARLOCK: for the '24 model year RAM updated the Warlock to the DT Tradesman platform. The correct application is our 2019+ RAM 1500 DT bumper.
-2019+ RAM REBEL: 5th gen Rebels please see our bumper specifically designed for your trucks.

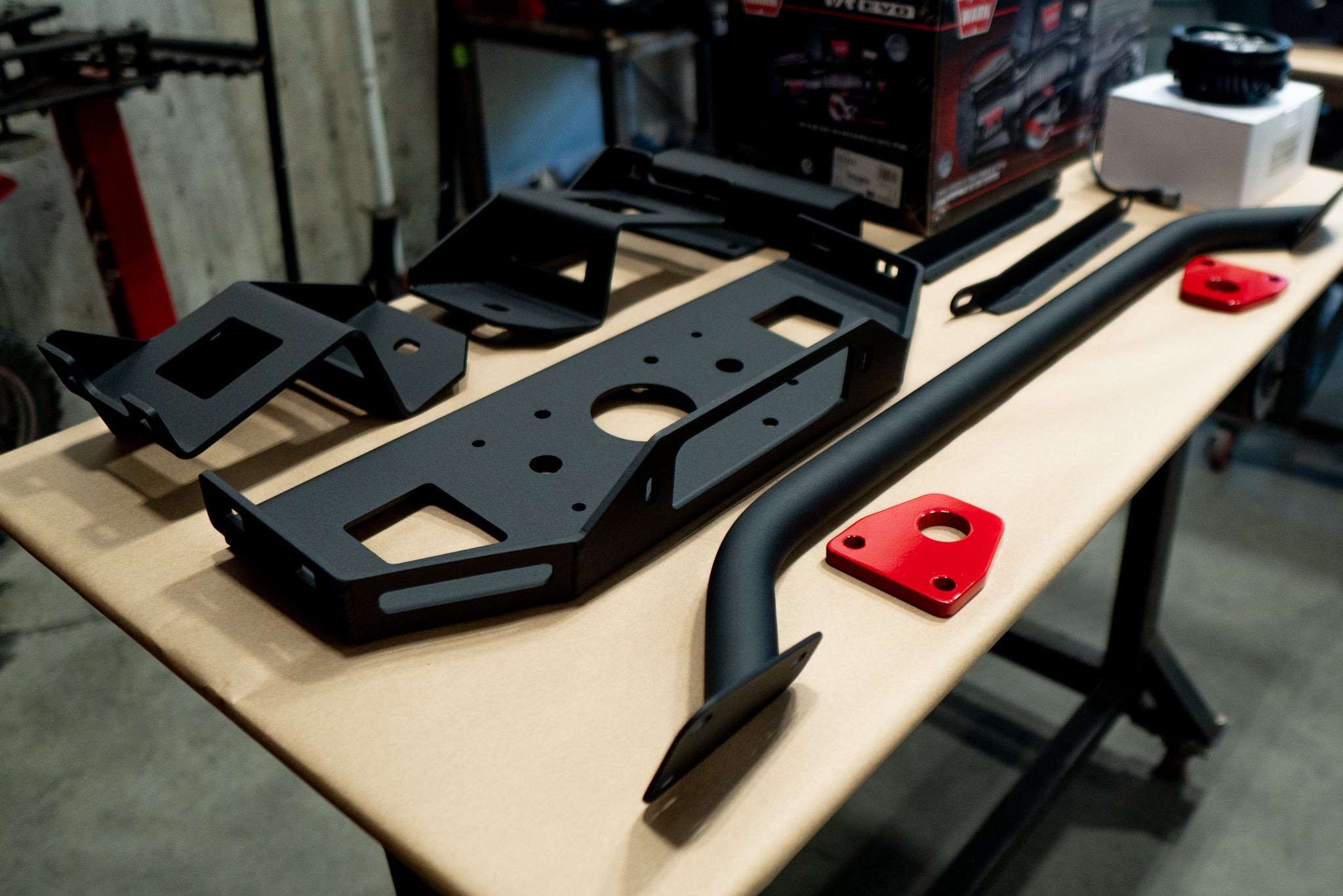

WINCH MOUNT

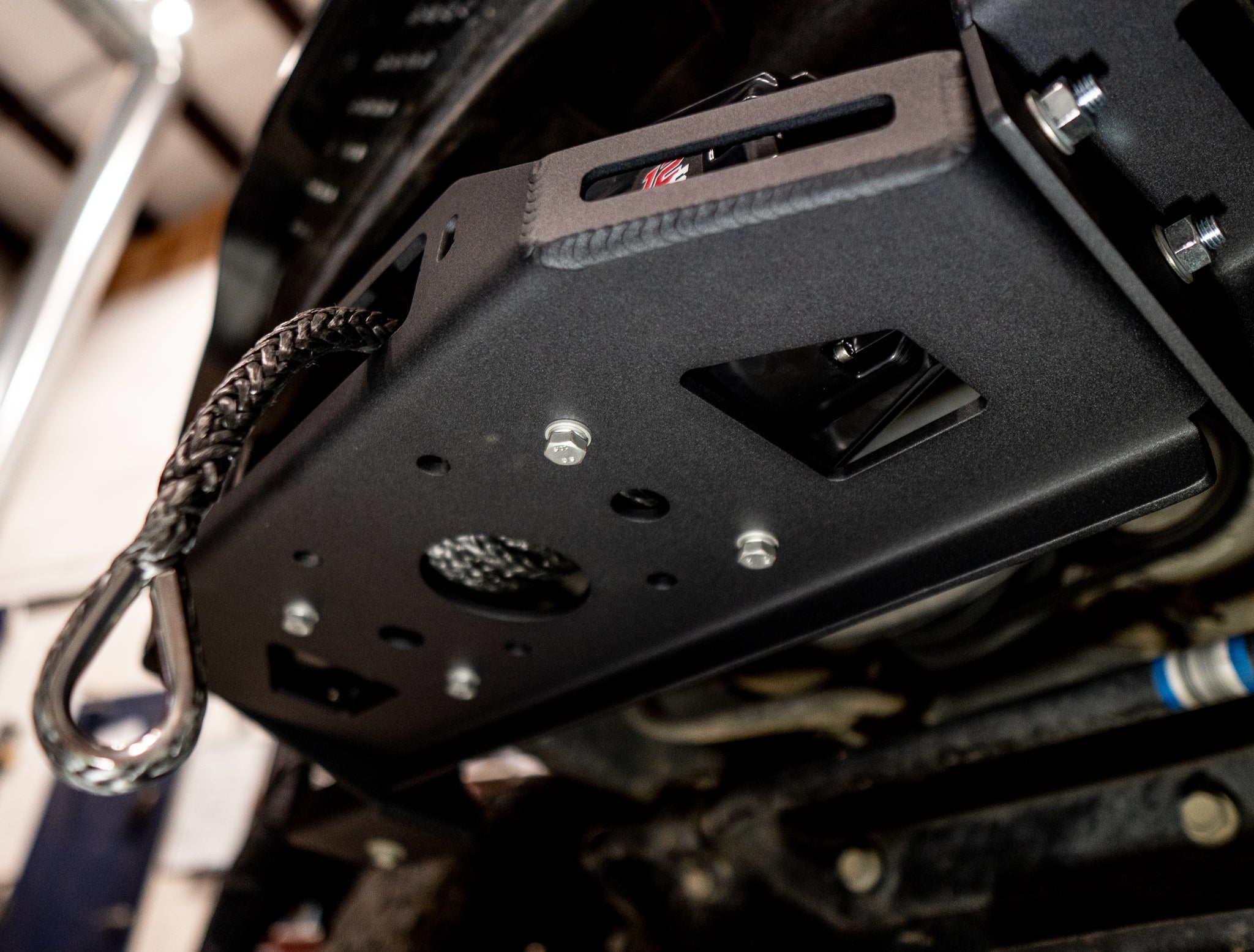

The winch mount option is separate from the bumper and built completely from 1/4" steel. The mount weighs just 38 lbs (not including the winch) and will fit most medium bodied winches with a standard 10" x 4.5" bolt pattern and Hawse style fairleads. This bumper is not compatible with roller style fairleads so steel cables will have to be used with a compatible hawse style fairlead. Due to height restrictions the control box of most winches will need to be moved/relocated and the winch must fit within 7" inches of height. We highly recommend the Warn VR EVO 12-S or 10-S, but we can also confirm fitment with: Warn ZEON Platinum 12-S or 10-S, Smittybilt X20 12-S or 10-S and the Badlands APEX winch. Please note: All of these winches require the control box to be relocated off of the top of the winch.
HITCH RECIEVER
The hitch receiver integrates into the winch mount option for this bumper, so you do need to purchase the winch option in order to mount the hitch receiver. This gives the advantage of being able to keep the bumper light weight and only add the additional weight of the structural winch mount components. It also allows the bumper to house both the winch and hitch receiver at the same time. This hitch receiver weighs 9 lbs and is rated for 300 lbs tongue weight.

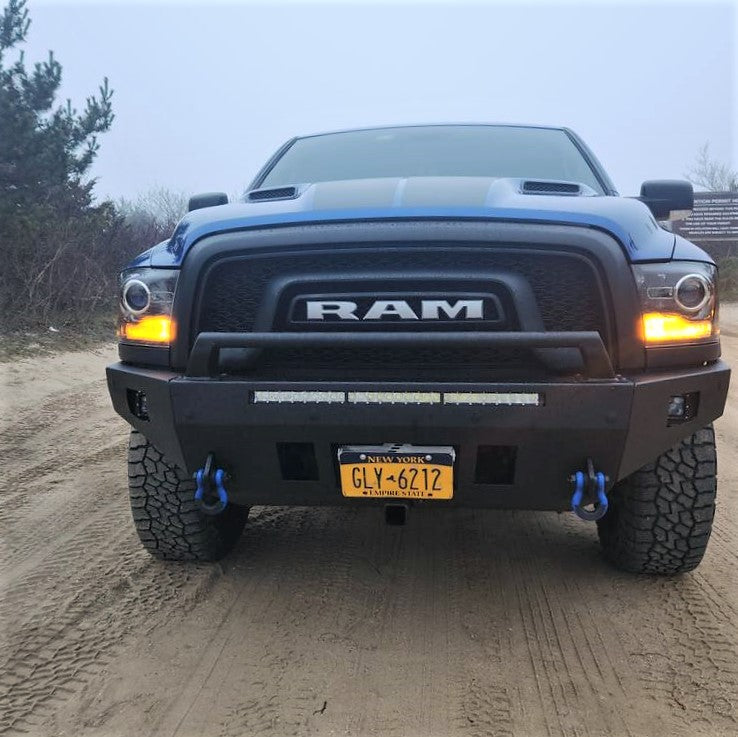

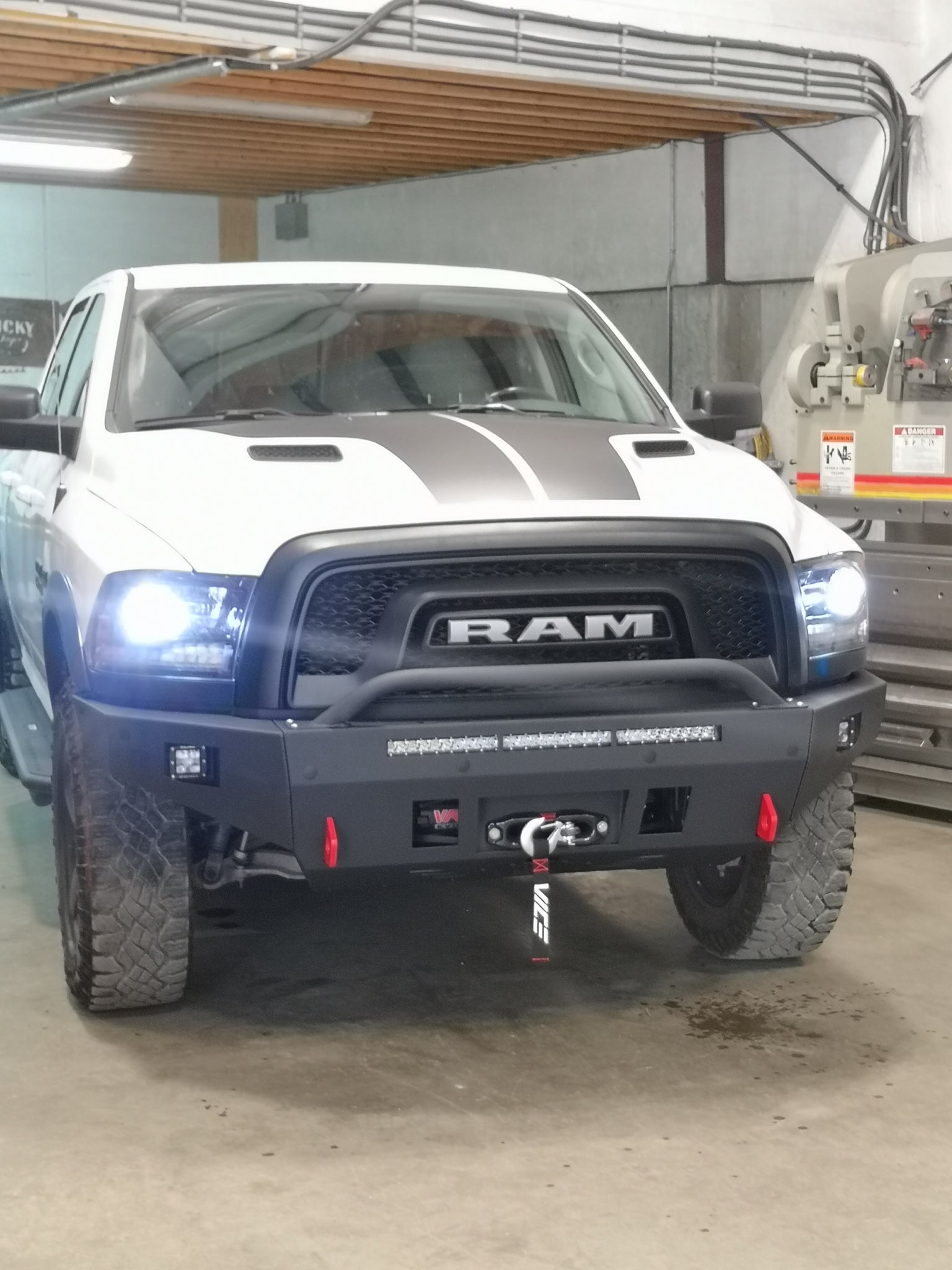

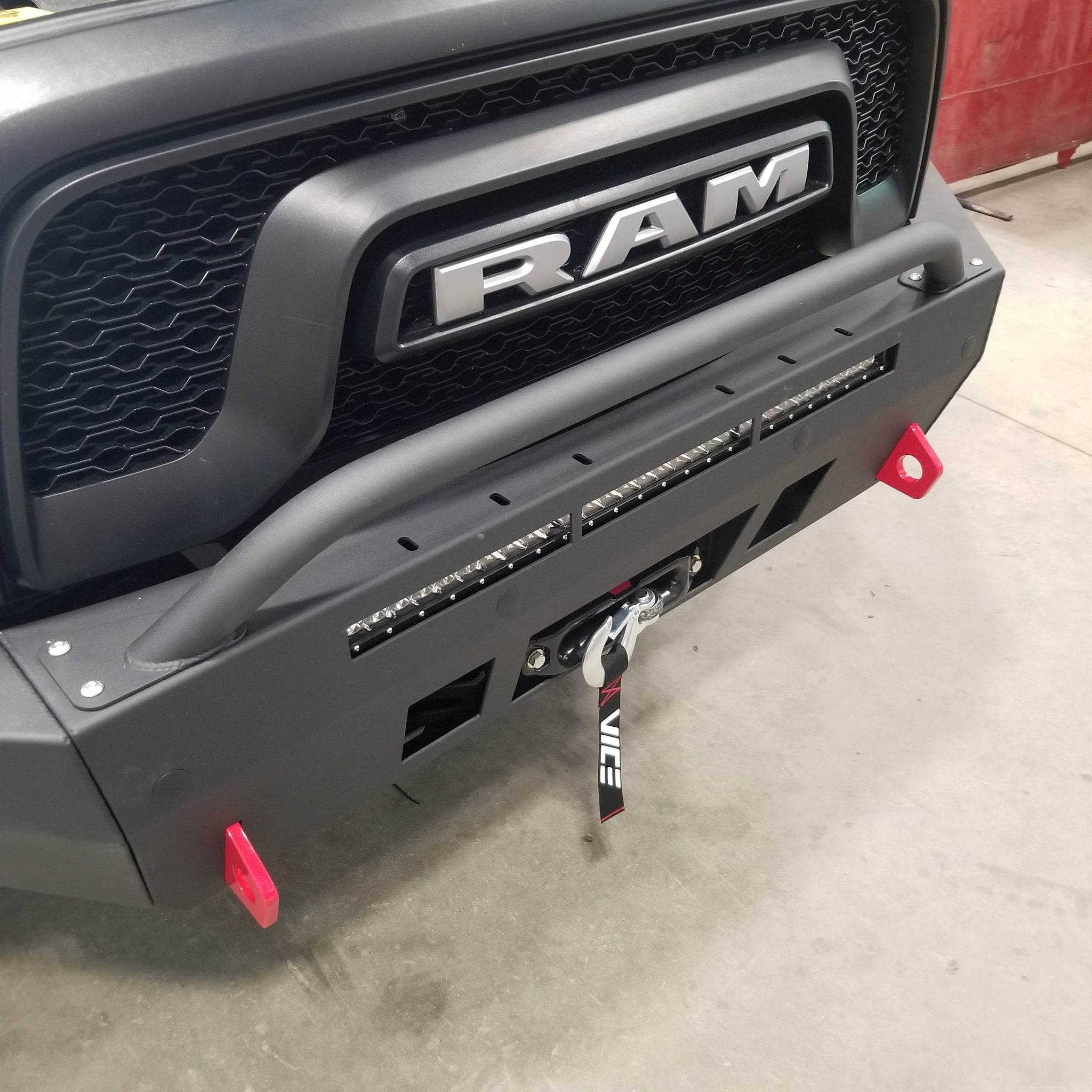

BULLBAR

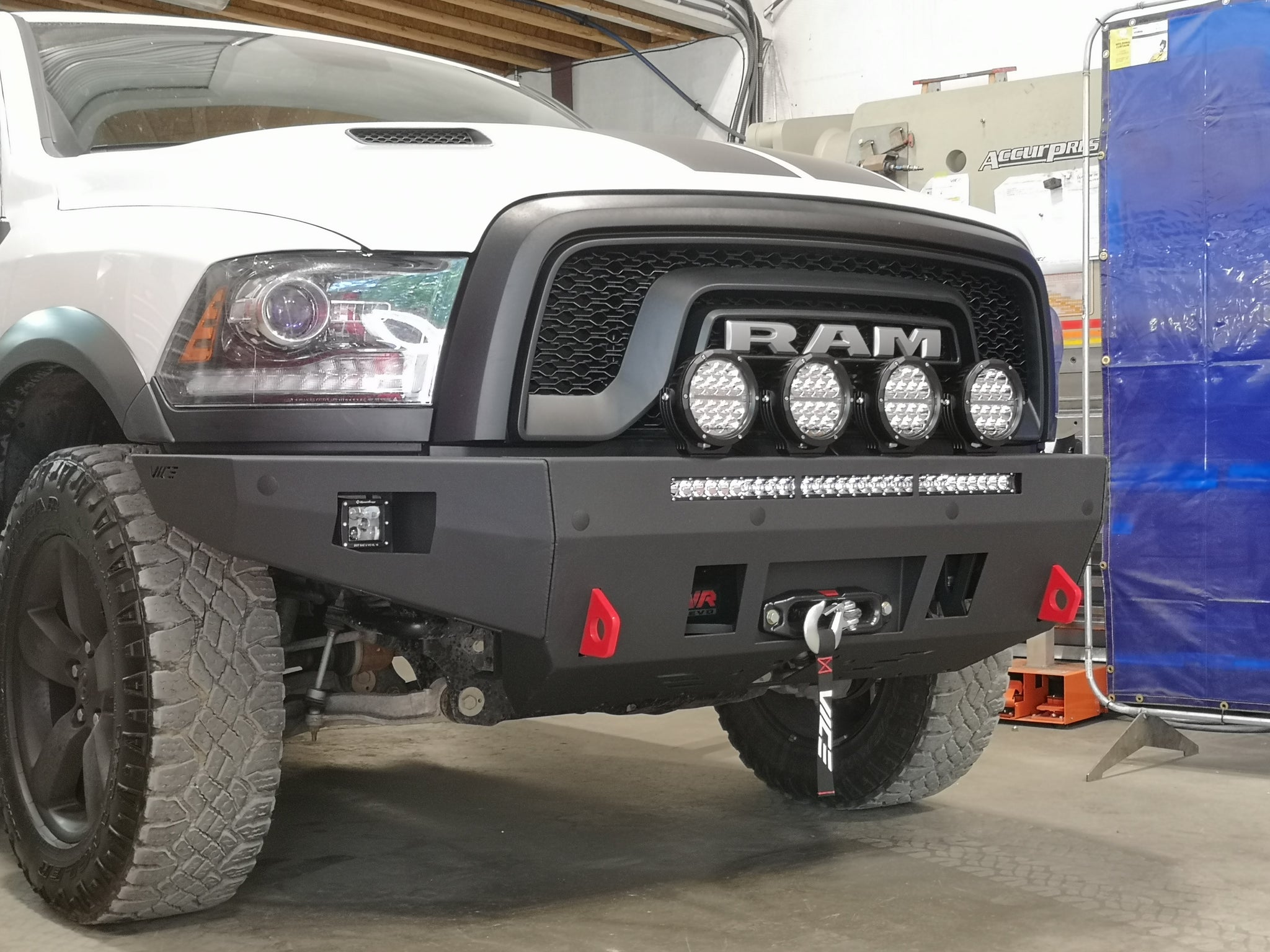

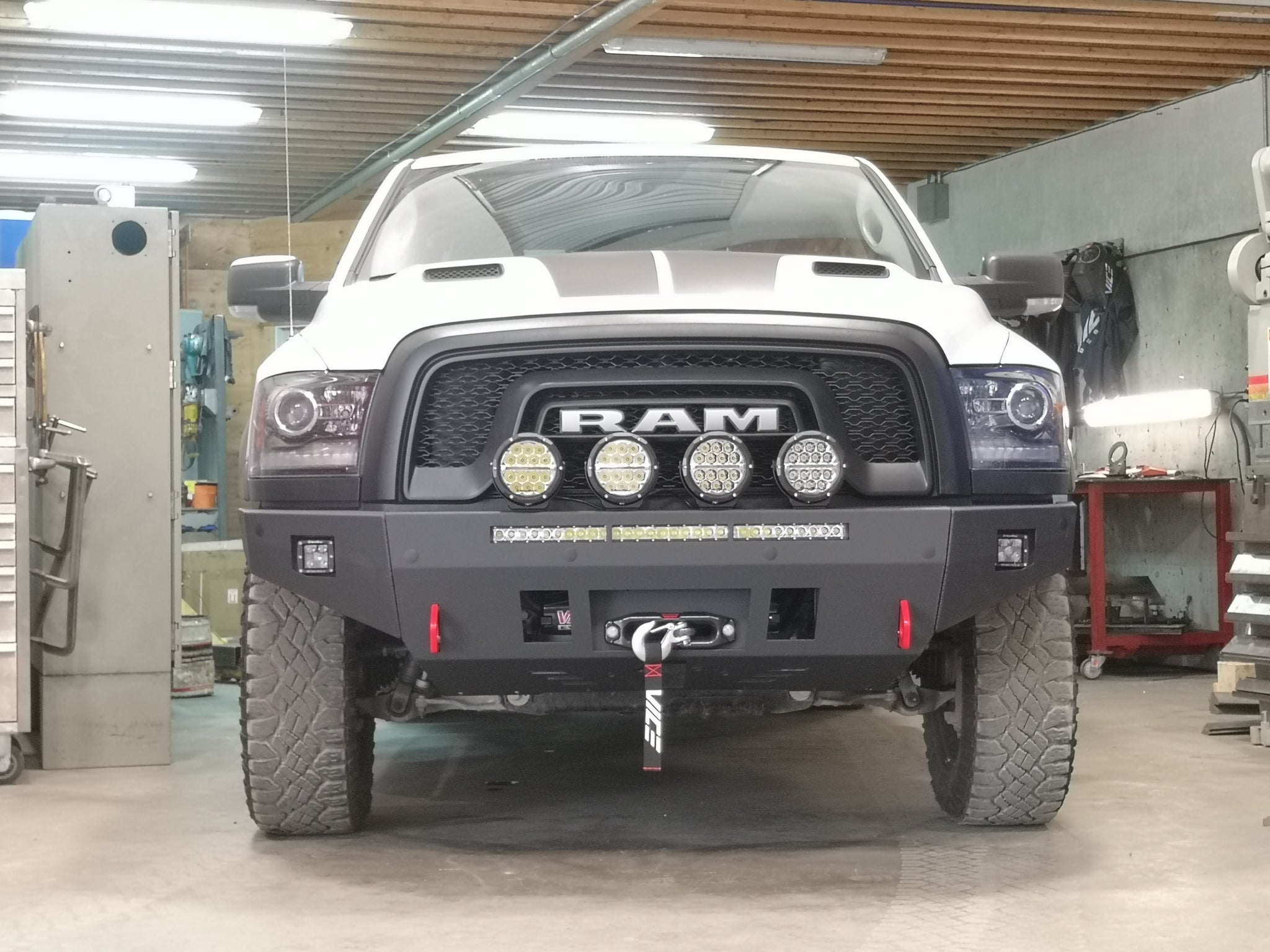

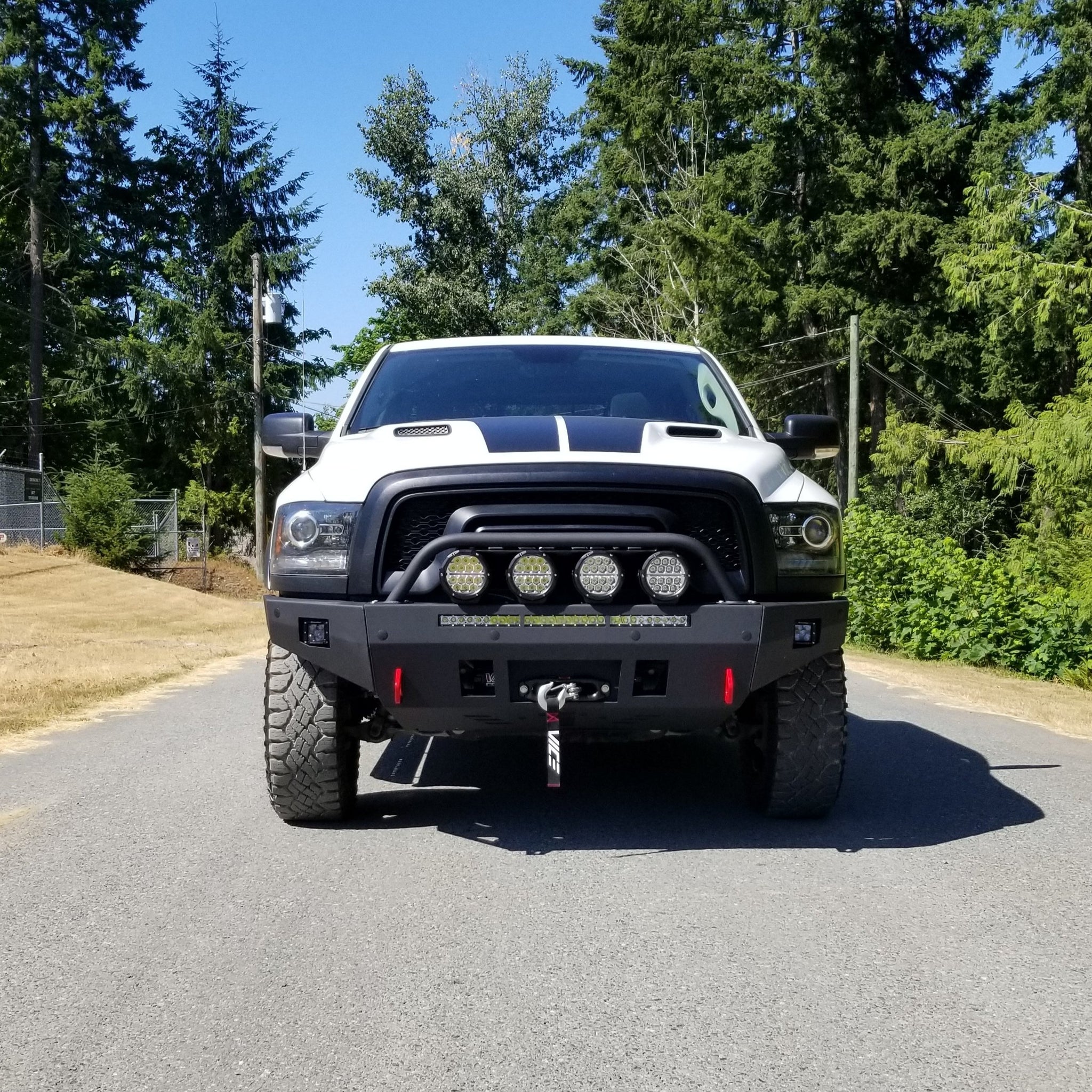

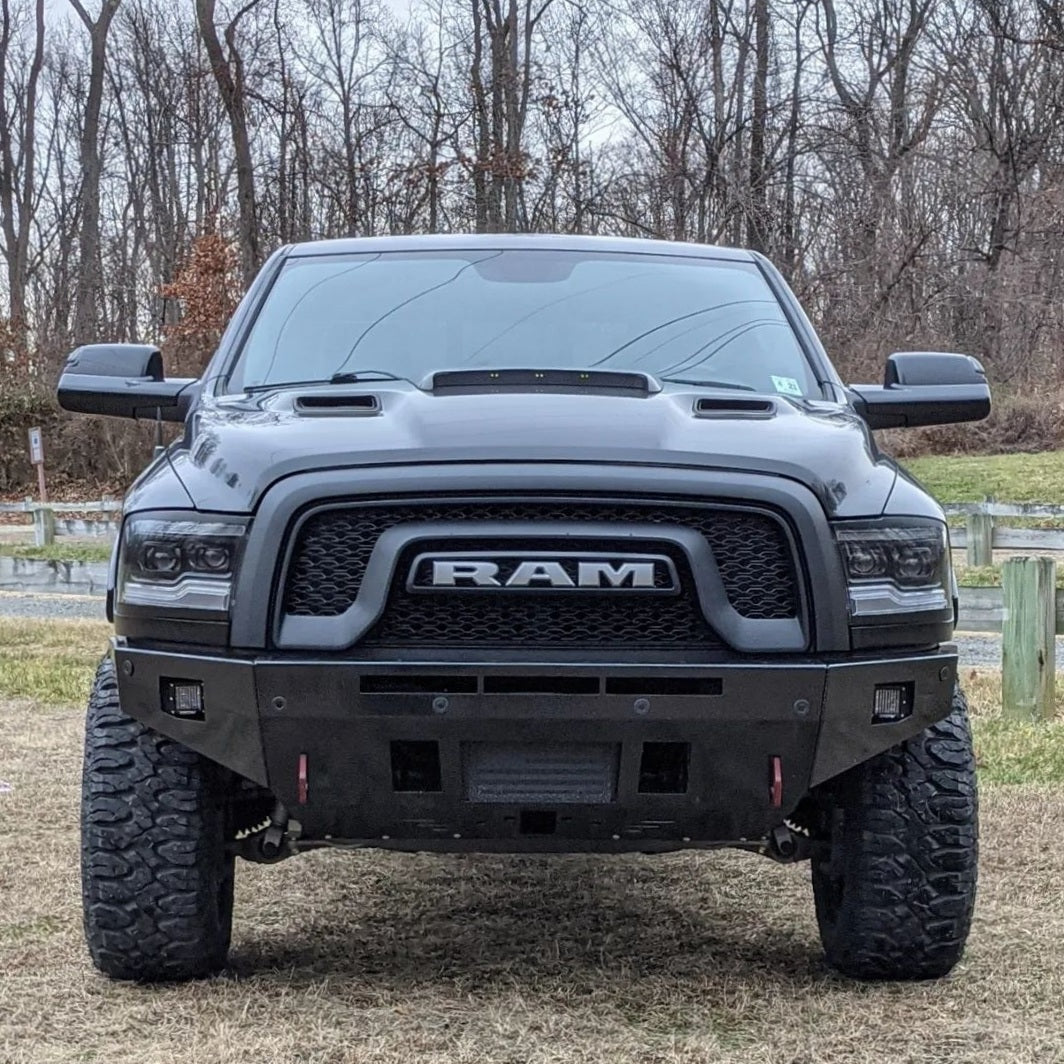

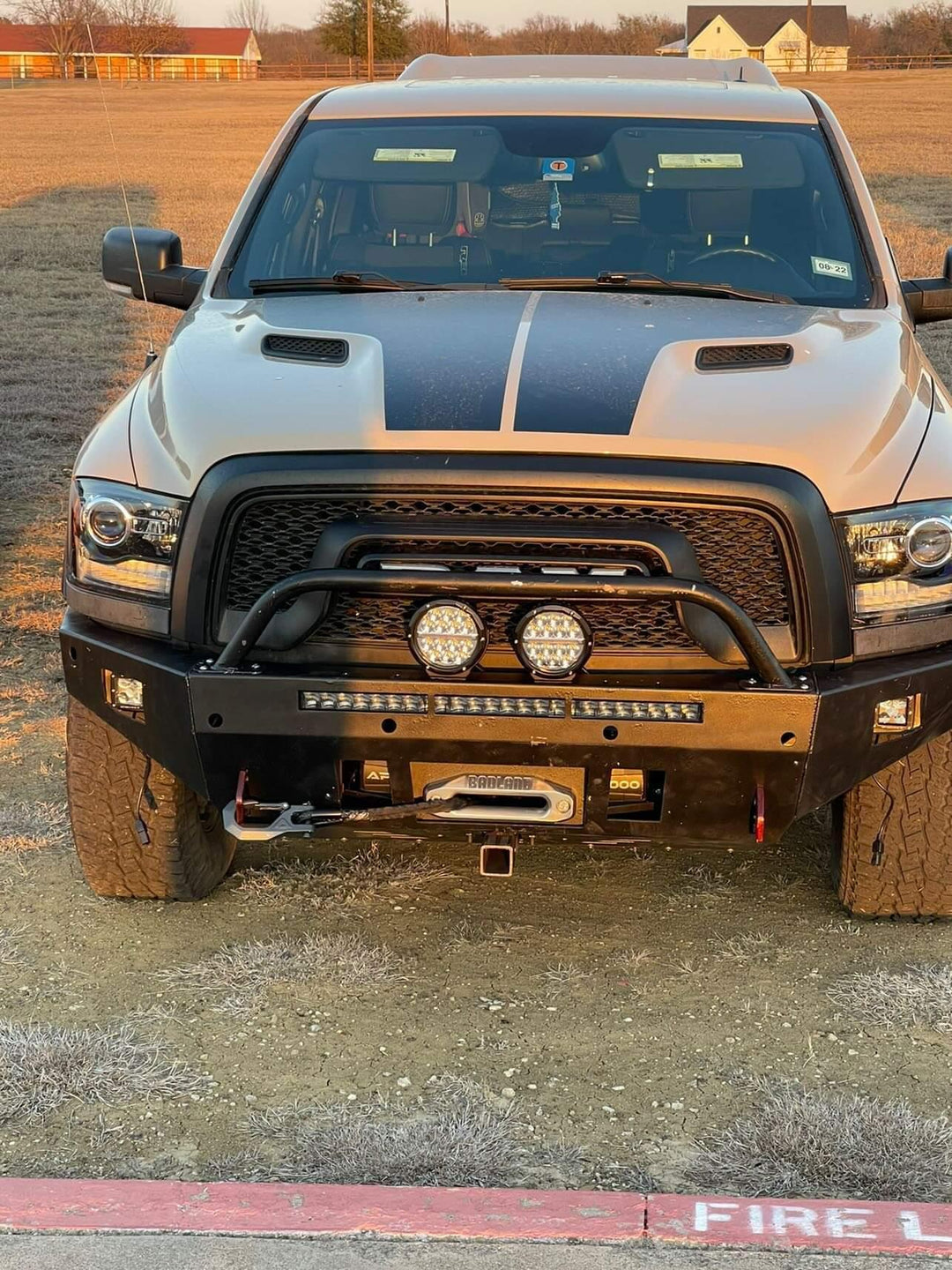

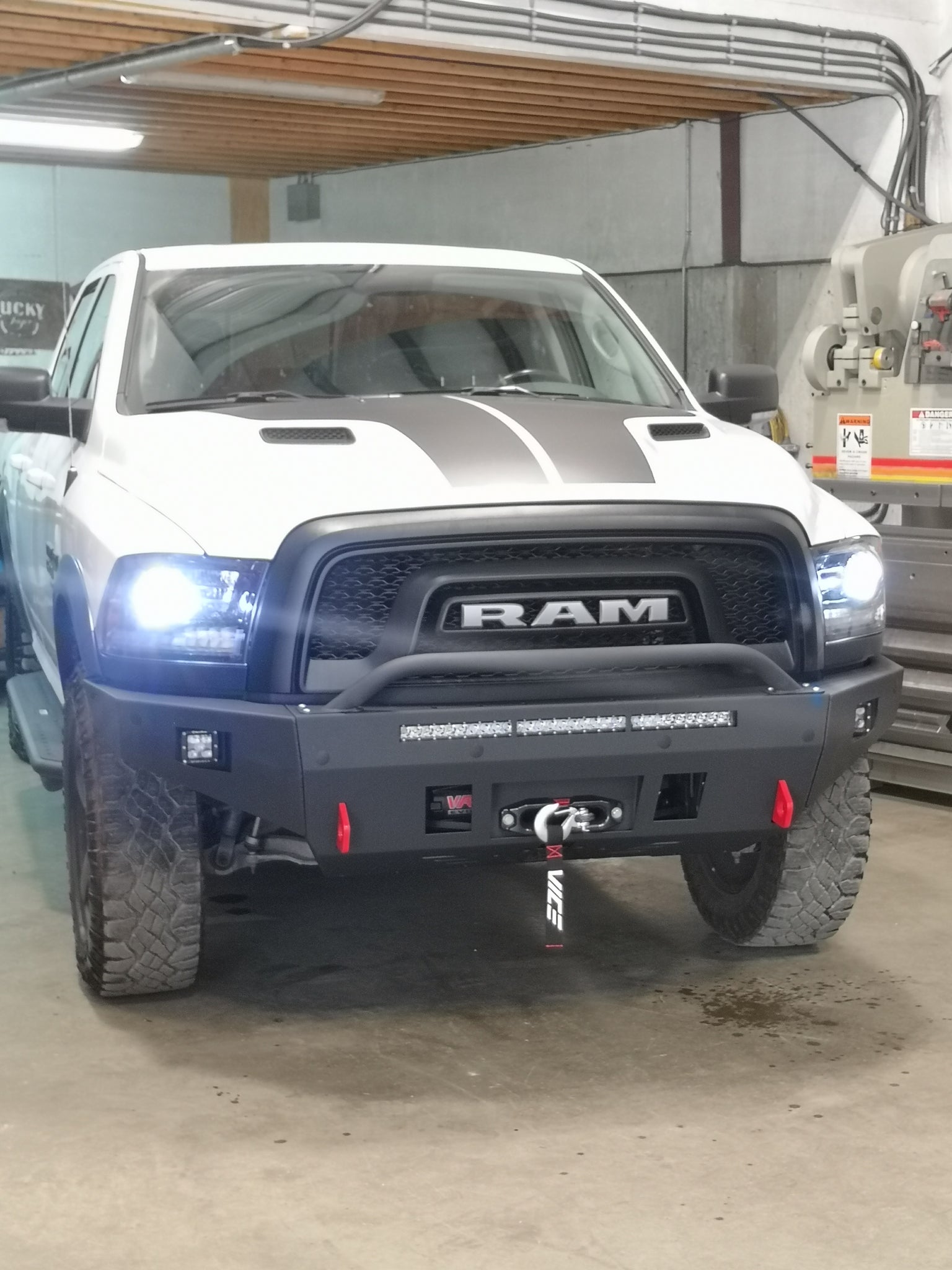

This bumper has two bulbar height options: High Rise & Low Rise. If you're not planning on putting lights on the top of the bumper, the Low Rise Bullbar is a great option for a sleek, low profile look. If you're wanting to put some 6" round driving lights on the top, you can integrate FOUR below the High Rise Bulbar.
PARKING SENSORS

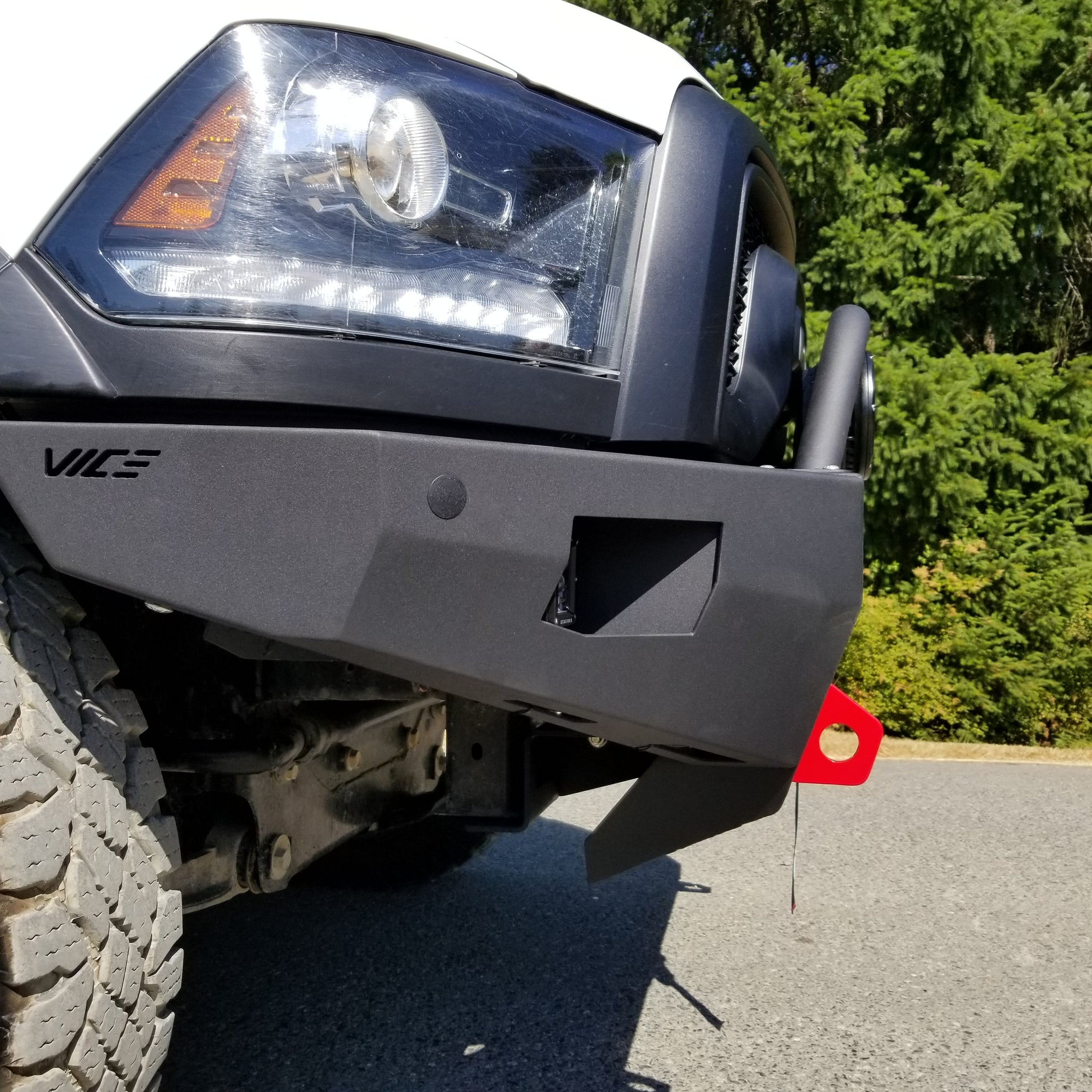

This bumper is made standard with cut outs for parking sensors that integrate with the OEM sensor bezels, so no customizations are required when transferring your sensors over - it's as easy as plug and play. If your vehicle is not equipped with parking sensors, the sensor holes come with plugs to keep a clean look.
LED Lighting
We've hand picked quality lights that are of great value. More importantly they integrate seamlessly with our bumper, and factory harness. No cutting, splicing, or complicated wiring diagrams - these kits are plug and play. Check out the video to see how our fog light kit retains use of the factory switch.
Our most popular fog light option is the Street Legal SAE Kit. These 3" Cubes throw out a clean beam of light and match to the factory LED Headlight color temperature. They turn on in an instant and focus light down along the road, not the heavens. These are availible in a WHITE or YELLOW lens option.
COATING
This bumper can be purchased without any coating (bare steel) or Powdercoated (Satin Black)
The bare steel option comes prepared (sanded) for the coating of your choice. It is shipped with a light oil coating to reduce surface rusting during shipping.
If ordered powdercoated, all bumper accessories ordered at the same time (bullbar, winch mount and Integrated skid plate) come coated as well! We use a multi-stage powdercoat to ensure toughness. Bumpers are degreased with high temp and pressure degreaser, pre-coated in a zinc based primer, and topcoated with a lightly textured satin black powdercoat. Its a very robust and great looking finish.
INSTALLATION
MOD V2 BUMPER INSTALLATION MANUAL - MN0113
Also checkout the video below!
C

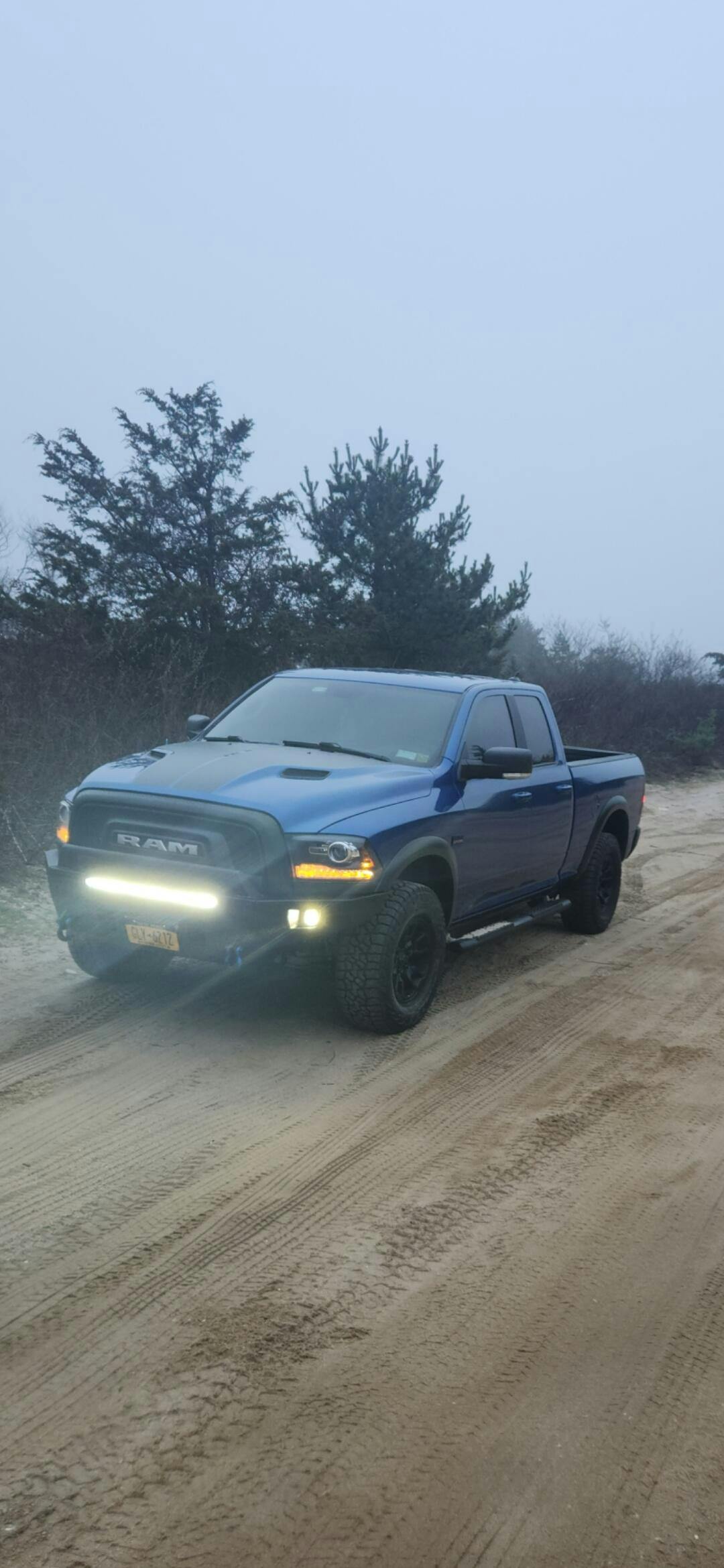

I love it it looks great
J
Would like to know if you have directions to install the skid plate for my 2021 warlock.
B
Absolutely loved the bumper. The powder coat job was fantastic. A couple of the carriage bolt holes weren't the same size so I did have to cut a bit out and there should definitely be more protection in the box as the delivery guys dragged mine to my door and scratched the powder coat right off the bumper. All in all though it's great construction, goes together quick and the lights are amazingly bright.
Thanks for the great review and feedback Brandon! We'll look into our clearances and packing procedure to try and improve them.
Can I send you some colour matched touch up paint for the bumper. Reach out to me at info@vicedesign.ca and I'll get some sent out to you.
Enjoy!
-Quinton
N
I'm glad they can now guarantee your shipment will arrive blemish free with a Powdercoated (Satin Black) option 1 working day after my review or it is just very much a coincidence.
N
If you're like me and may have missed the FINISH (BARE STEEL) portion of the page when purchasing this product, after reading the reviews and seeing all promotional material for the product as being black. I will reiterate it is FINISH (BARE STEEL), if you buy this kit, you will have to go get it powder coated yourself after receiving it in the mail roughly 1 month later.
Hi Nate,
Sorry you missed that on the product page. We definately weren'y trying to hide that information from you.
Unfortunately we did not offer powdercoating when you purchased your bumper because we had to outsource it and couldnt control the quality of the coating or the volume we needed done. Last year we invested heavily in our buisness and brought powdercoating in house. It takes an immense amount of time to build and develop high quality standards for coating, let alone the time it takes to develop packaging processes to ensure safe transit. Only now that we are 100% happy with how well our powdercoating holds up, we can now offer it on this product. I am truly sorry that it wasn't offered when you purchased it. Were a small buisness that prides itself on quality so we didnt want to rush it. Im sure your local coating shop did an awesome job and hope the bumper looks fantastic on your RAM truck.
Best,
Quinton
