We've shed weight on this V2 Modular [MOD] Series bumper! Constructed with a 10ga steel shell and 1/4" mounting bracketry where it matters, this bumper has a base weight of just 98 lbs!
Every bumper comes with all features necessary to add options at any time you wish. The bumper has the necessary features to add a winch tray, hitch receiver and two sizes of tubular bullbars. It also comes with the ability to mount a 32" light bar with two driving lights on either side. We've even added slots at the top to add FOUR 6" round driving lights, compatible with our High Rise Bullbar.
TRUCK COMPATIBLITY
This bumper fits:
2009-2018 Ram 1500 Trucks with all Engine options
2019-2023 RAM 1500 DS (Classic or 4th Generation Bodystyle) Trucks with all Engine options
This bumper does not fit 2019-2024 RAM 1500 DT ( New or 5th Generation Bodystyle) trucks.
If you're unsure on what version of 1500 you have, send us a message - we'll make sure you get the correct bumper!
WINCH MOUNT
The winch mount option is separate from the bumper and built completely from 1/4" steel. The mount weighs just 38 lbs (not including the winch) and will fit most medium bodied winches with a standard 10" x 4.5" bolt pattern and Hawse style fairleads. This bumper is not compatible with roller style fairleads so steel cables will have to be used with a compatible hawse style fairlead. Due to height restrictions the control box of most winches will need to be moved/relocated and the winch must fit within 7" inches of height. We highly recommend the Warn VR EVO 12-S or 10-S, but we can also confirm fitment with: Warn ZEON Platinum 12-S or 10-S, Smittybilt X20 12-S or 10-S and the Badlands APEX winch. Please note: All of these winches require the control box to be relocated off of the top of the winch.
HITCH RECIEVER
The hitch receiver integrates into the winch mount option for this bumper, so you do need to purchase the Winch Mount option in order to mount the hitch receiver. This gives the advantage of being able to keep the bumper light weight and only add the additional weight of the structural winch mount components. It also allows the bumper to house both the winch and hitch receiver at the same time. This hitch receiver weighs 9 lbs and is rated for 300 lbs tongue weight
BULLBAR
This bumper has two bullbar height options: High Rise & Low Rise. If you're not planning on putting lights on the top of the bumper, the Low Rise Bullbar is a great option for a sleek, low profile look. If you're wanting to put some 6" round driving lights on the top, you can integrate FOUR below the High Rise Bullbar.
PARKING SENSORS
This bumper is made standard with cut outs for parking sensors that integrate with the OEM sensor bezels, so no customizations are required when transferring your sensors over - it's as easy as plug and play. If your vehicle is not equipped with parking sensors, the sensor holes come with plugs to keep a clean look.
LED Lighting
We've hand picked quality lights that are of great value. More importantly they integrate seamlessly with our bumper, and factory harness. No cutting, splicing, or complicated wiring diagrams - these kits are plug and play. Check out the video to see how our fog light kit retains use of the factory switch.
Our most popular fog light option is the Street Legal SAE Kit. These 3" Cubes throw out a clean beam of light and match to the factory LED Headlight color temperature. They turn on in an instant and focus light down along the road, not the heavens. These are availible in a WHITE or YELLOW lens option.
COATING
This bumper can be purchased without any coating (bare steel) or Powdercoated (Satin Black)
The bare steel option comes prepared (sanded) for the coating of your choice. It is shipped with a light oil coating to reduce surface rusting during shipping.
If ordered powdercoated, all bumper accessories ordered at the same time (bullbar, winch mount and Integrated skid plate) come coated as well! We use a multi-stage powdercoat to ensure toughness. Bumpers are degreased with high temp and pressure degreaser, pre-coated in a zinc based primer, and topcoated with a lightly textured satin black powdercoat. Its a very robust and great looking finish.
INSTALLATION
MOD V2 BUMPER INSTALLATION MANUAL - MN0113
Checkout the video below!
Customer Reviews
Based on 9 reviews
89%
(8)
0%
(0)
0%
(0)
0%
(0)
11%
(1)
N
Visual appearance and fit is pleasing for truck. I was hoping for this to be heavier duty for some minimal protection. For what it cost I’m not happy with my purchase. If I could have shipped back for return I would have.
Hi Nathan,
Glad the bumper fit well and you're happy with how it looks. The bumper is certianly up to the task in the strength department - we've had plenty of cutomers who have hit deer on the highway and its completely protected them and the vehicle. The bumper mounts are 1/4' thick and are fully boxed. The 10ga (0.135') shell is thicker than the industry standard of 11ga (0.120'). We design the bumpers so they can be daily driven and not bag out the suspension and steering components, which will happen if you go to a heavier steel. You're well protected!
Best,
Quinton
R
2009-2018 RAM 1500 & 2019-2023 RAM CLASSIC | MOD V2 Bumper
R

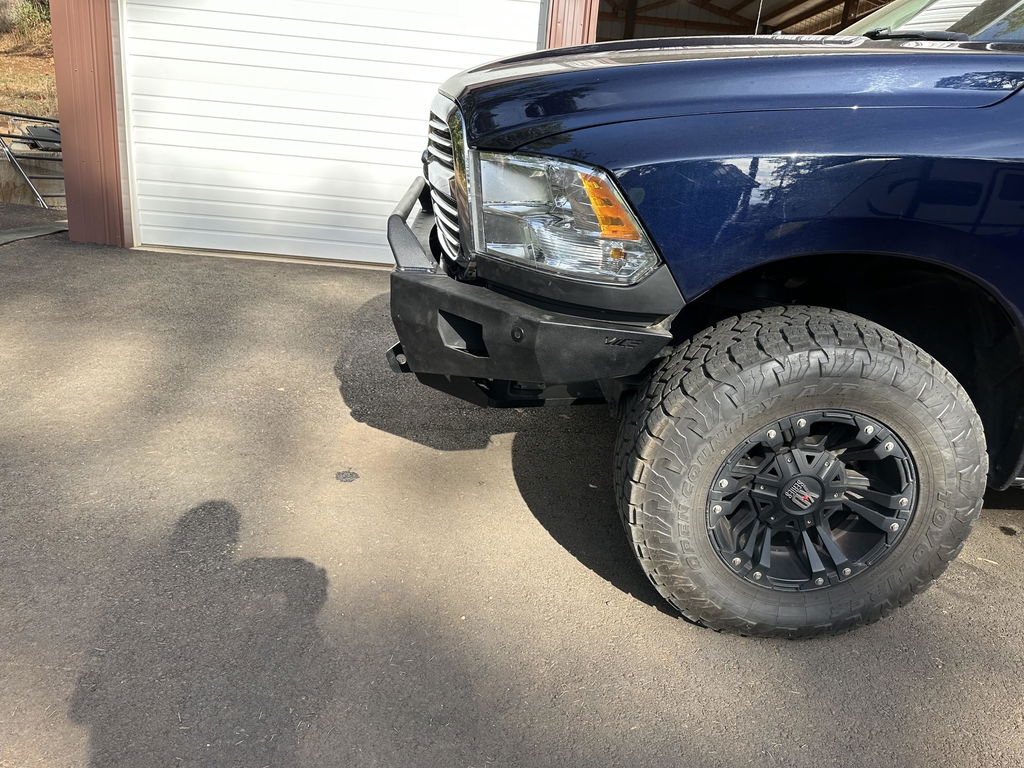

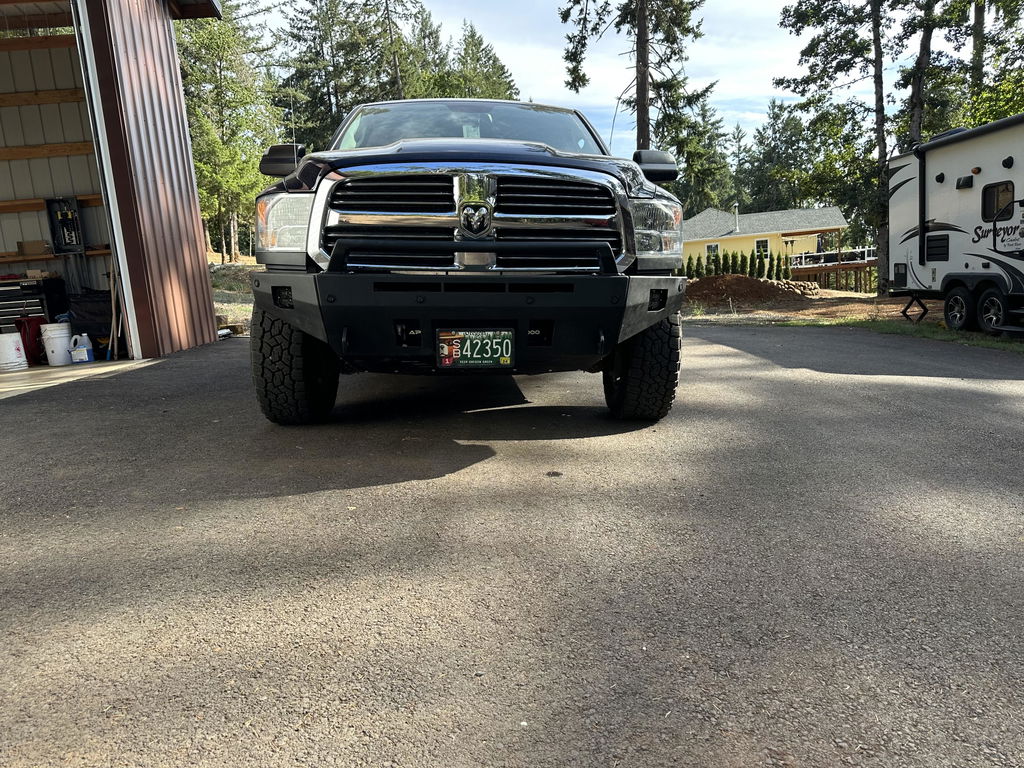

I had another brand winch bumper on my truck for about two months, took off after trip to high desert. It was flimsy, fit and finish not good took off and sold it when I got home. The mod 2 bumper welds fit and finish are top notch. When putting bumper together no hammering prying or cussing everything lines up like it should including winch plate and skid plate. Could not be happier with purchase. Also was sent two of the same side ends on bumper. Emailed Quin on his day off got back to me the same day a Saturday said would ship new one out Monday, and he did. Quin and Allen were very helpful. Customer service also 5 star.
Rick S
Thanks for the photos Rick. Truck is looking great! Really appreciate the perspective from someone who's tried the competition. We take a lot of pride in everything we make, so it's nice to hear from customers how it stacks up against the competition.
Allen
j
Great product worth every penny. Looks good in the truck love the wheel clearance I have now. Waiting to get a winch in it but definitely easy to install.
E
Great fit and quality. Great customer service. Will spread the word.
